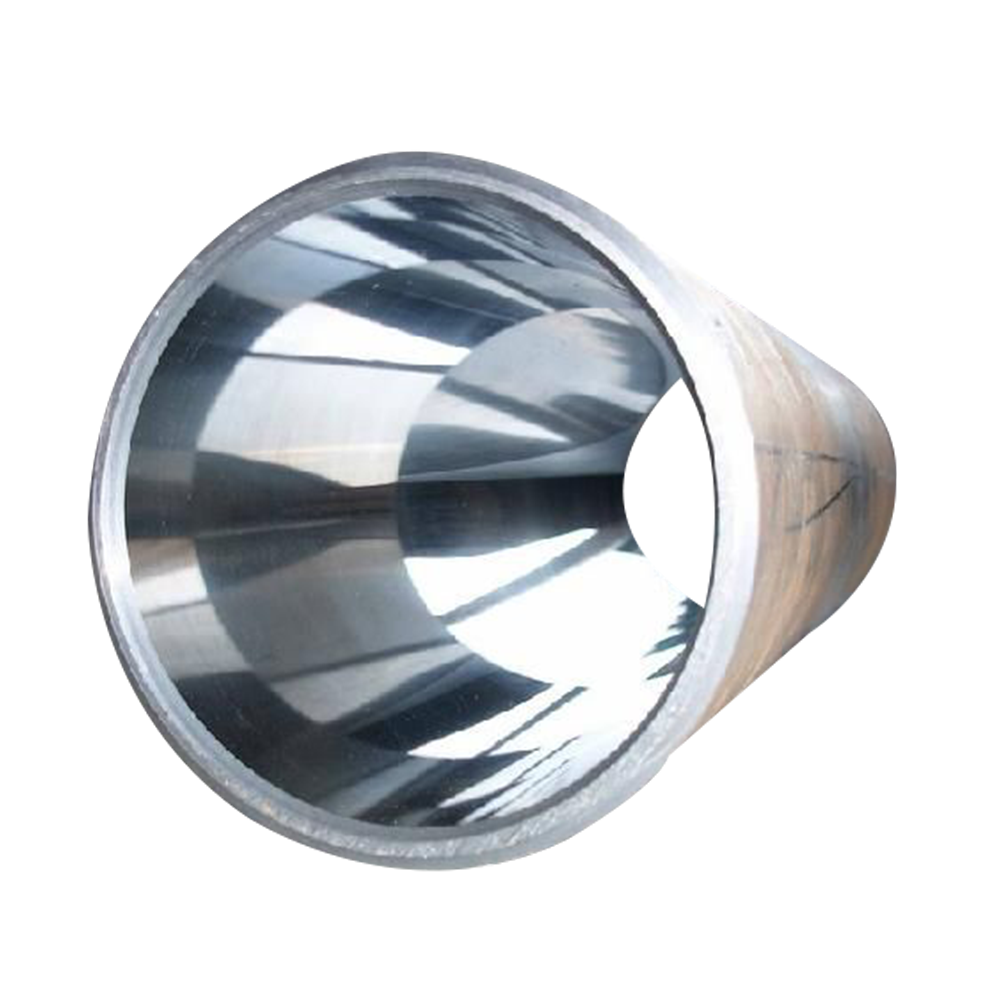

Honed Tubing Hydraulic Cylinder Pipe

Name: ASTM B280 Air Conditioning & Refrigeration Tube
Brand: LINKUN
SKU: 155848558

Quantity(tons) 1-10 10 Lead time (days) 15 To be negotiated 00:3 Hydraulic Cylinder Honing Tube Inside Dia (mm) ID Tolerance (mm) WT Tolerance (mm) H7 H8 H9 H10 30 +0.021/0 +0.033/0 +0.052/0 +0.084/0 7.5% 210mm 10% 30 - 50 +0.025/0 +0.039/0

Send Inquiry Chat Now

Description

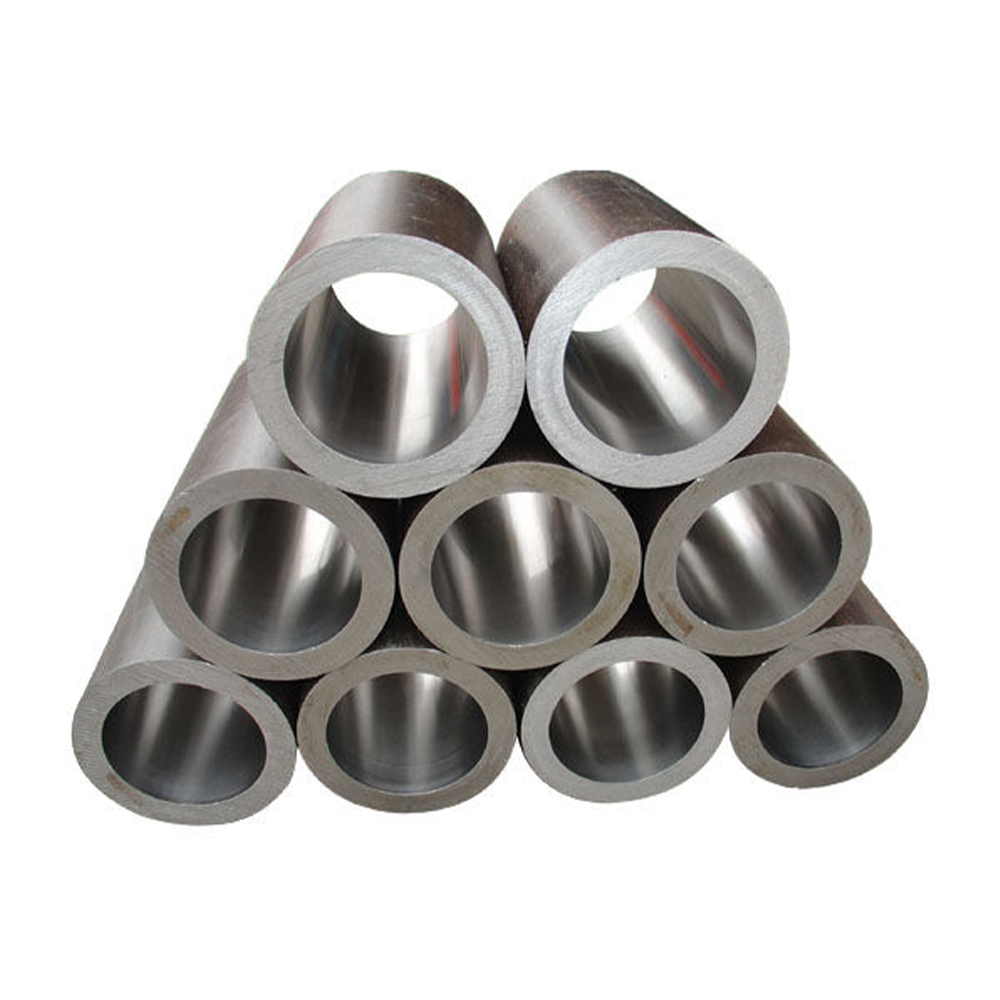

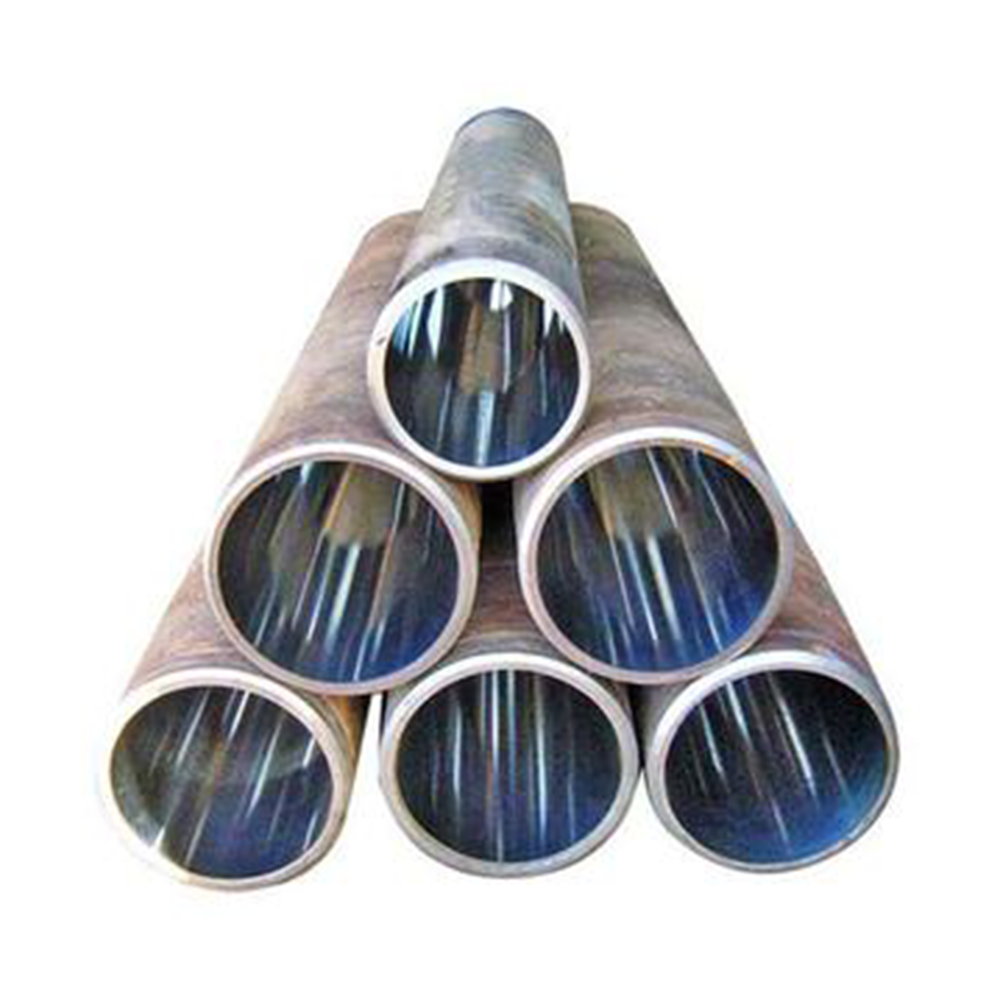

Hydraulic Cylinder Honing Tube
Inside Dia (mm)	ID Tolerance (mm)				WT Tolerance (mm)
Inside Dia (mm)	H7	H8	H9	H10	WT Tolerance (mm)
≤30	+0.021/0	+0.033/0	+0.052/0	+0.084/0	±7.5% >210mm ±10%
30 - ≤50	+0.025/0	+0.039/0	+0.062/0	+0.100/0
50 - ≤80	+0.030/0	+0.046/0	+0.074/0	+0.120/0
80 - ≤120	+0.035/0	+0.054/0	+0.087/0	+0.140/0
120 - ≤180	+0.040/0	+0.063/0	+0.100/0	+0.160/0
180 - ≤250	+0.046/0	+0.072/0	+0.115/0	+0.185/0
250 - ≤315	+0.052/0	+0.081/0	+0.130/0	+0.210/0
315 - ≤700	+0.057/0	+0.089/0	+0.140/0	+0.230/0

Steel Grade	Chemical composition %
	C	Si	Mn	P	S	Al
	C	Si	Mn	≤		≥
20#	0.17-0.24	0.17-0.37	0.35-0.65	0.035	0.035	/
45#	0.42-0.50	0.17-0.37	0.50-0.80	0.035	0.035	/
Q345B	≤0.2	≤0.5	1.00-1.60	0.03	0.03	/
Q345D	≤0.2	≤0.5	1.00-1.60	0.03	0.03	0.015
25Mn	0.22-0.29	0.17-0.37	0.70-1.00	0.035	0.035	/
27SiMn	0.24-0.32	1.10-1.40	1.10-1.40	0.035	0.035	/
ST52	≤0.22	≤0.55	≤1.6	0.025	0.025	/
SAE1026	0.22-0.28	0.15-0.35	0.60-0.90	0.04	0.05	/

Delivery Condition	cold finished (hard) (BK)		cold drawn and stress-relieved (BK+S)
Steel Grade	Tensile Strength (Mpa)	Elongation (%)	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)
20#	≥550	≥8	≥520	≥375	≥15
45#	≥640	≥5	≥600	≥520	≥10
16Mn	≥640	≥5	≥600	≥520	≥14
25Mn	≥640	≥5	≥600	≥510	≥15
27SiMn	≥800	≥5	≥760	≥610	≥10
ST52	≥640	≥5	≥600	≥520	≥14
SAE1026	≥640	≥5	≥600	≥510	≥15
