API 5L Psl1 Line Pipe covers seamless and welded carbon steel line pipe which suitable for use in conveying gas and oil industry. Our factory can offer a high-quality API5L Gr.b line pipe to all of the worlds with an API certificate. API 5L gr.b ERW steel pipe is a very common steel grade, usually for psl1 gr.b pipe.
Standard: API 5L PSL 1, 46th Edition
Steel Grade: B/L245, X42/L290, X46, X52/L360, X56/L390, X60/L415, X65/L450, X70/L485, X80/L555
API 5L PSL1 B, API 5L PSL1 X42, API 5L PSL1 X46, API 5L PSL1 X52, API 5L PSL1 X56, API 5L PSL1 X60 line pipe.
Other standards:
China: GB/T 9711-2017
ISO: ISO 3183-2012, NACE MR0175/ISO 15156
SHELL Standard: DEP 31.40.20.37
TOTAL Standard: TOTAL GS EP PLR 201
Canada Standard: CSA Z245.1-14
Kuwait Standard: KOC-MS-001 PT.1 REV.2(2009), KOC-MS-018
Norway Standard: DNV-OS-F101
Iran Standard: IPS-M-PI-190
API 5L PSL1 LINE PIPE Chemical Composition & Mechanical Property:
API 5L PIPE PSL1 |
Chemical Composition |
Mechanical Properties | ||||||
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
TENSILE ( Min ) |
YIELD ( Min ) | |||
Psi X 1000 | Mpa | Psi X 1000 | Mpa | |||||
Grade B |
0.26 |
1.20 |
0.030 |
0.030 |
60 |
414 |
35 |
241 |
Grade X42 |
0.26 |
1.30 |
0.030 |
0.030 |
60 |
414 |
42 |
290 |
Grade X46 |
0.26 |
1.40 |
0.030 |
0.030 |
63 |
434 |
46 |
317 |
Grade X52 |
0.26 |
1.40 |
0.030 |
0.030 |
66 |
455 |
52 |
359 |
Grade X56 |
0.26 |
1.40 |
0.030 |
0.030 |
71 |
490 |
56 |
386 |
Grade X60 |
0.26 |
1.40 |
0.030 |
0.030 |
75 |
517 |
60 |
414 |
Grade X65 |
0.26 |
1.45 |
0.030 |
0.030 |
77 |
531 |
65 |
448 |
Grade X70 |
0.26 |
1.65 |
0.030 |
0.030 |
82 |
565 |
70 |
483 |
Size Range:
Seamless: OD: 21.3-1067mm WT: 2-150mm L:5.8m/6m/11.8m/12m
Welded: OD: 21.3-1422mm WT: 3.2-60mm L:5.8m/6m/11.8m/12m
Ends design:

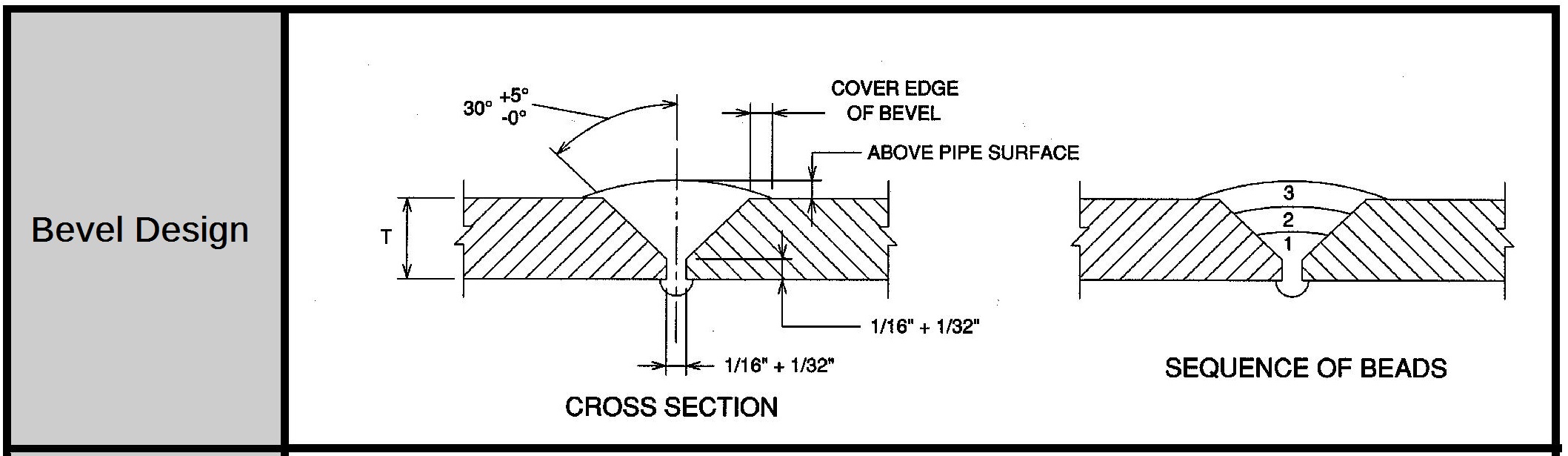

1) Bevel the welding ends to an angle of 30°, +5°, -0°, with a root face of 1/16", +/- 1/32". The bevel shall form a V groove with an included angle of 60°+10/-0. The root opening shall be 1/16", +/- 1/32" according to ANSI B16.25.
2) Plain or straight ends.
3) Threaded ends with coupling or without coupling according to API Spec. 5B.
Package:
Black painted or bare surface, hexagonal bundled with steel strips if the pipe diameter=323.9mm, loose packing if the pipe diameter larger than 323.9mm.
Shipment:
Land transportation by truck or train, sea transportation by container ship or bulk ship.
Application:
Crude oil Pipelines, Natural Gas Pipelines, Jet Fuel Pipelines, Water and Sewage Pipelines, Mineral Slurry Pipelines, Submarine Pipelines, Onshore and Offshore Pipelines, Line Pipe Pile.
Please provide below information if you request for quote:
Title | API 5L Line Pipe |
Qty | Pcs/Mtrs/Tons |
Size | NPS (Outside Diameter) and Schedule No.(Wall Thickness) and Length |
PSL Level | PSL 1 or PSL 2 |
Grade | Grade A, Grade B, X42, X46, X52, X60, X70, X80, etc |
Manufacturing process | Seamless or Welded |
Surface finish | Bare, Black |
Ends finish | Plain Ends, Beveled Ends, Threaded Ends |
Marking | If different from the API 5L Specification |
Protective Coatings & Linings | 3LPE, 3LPP, FBE, AkzoNobel, Epoxy Zinc-rich Primer, Liquid Epoxy Resin, etc |
Manufacturer | Approved Manufacturer List (AML), or Country of Origin restrictions |
Sour service | Yes / No |
CANGZHOU SUPERB PIPE INDUSTRY CO.,LTD is one of the leading China api 5l pls1 line pipe manufacturers and suppliers, if you want to buy or import best high-quality api 5l pls1 line pipe, api 5l grb steel pipe, 5l x42 pipe, api5l x52 pipe, api 5l x46 line pipe, api 5l x56 pipe professional company, factory, seller, and exporter, please feel free to contact us.
